Outdoor Area Lighting

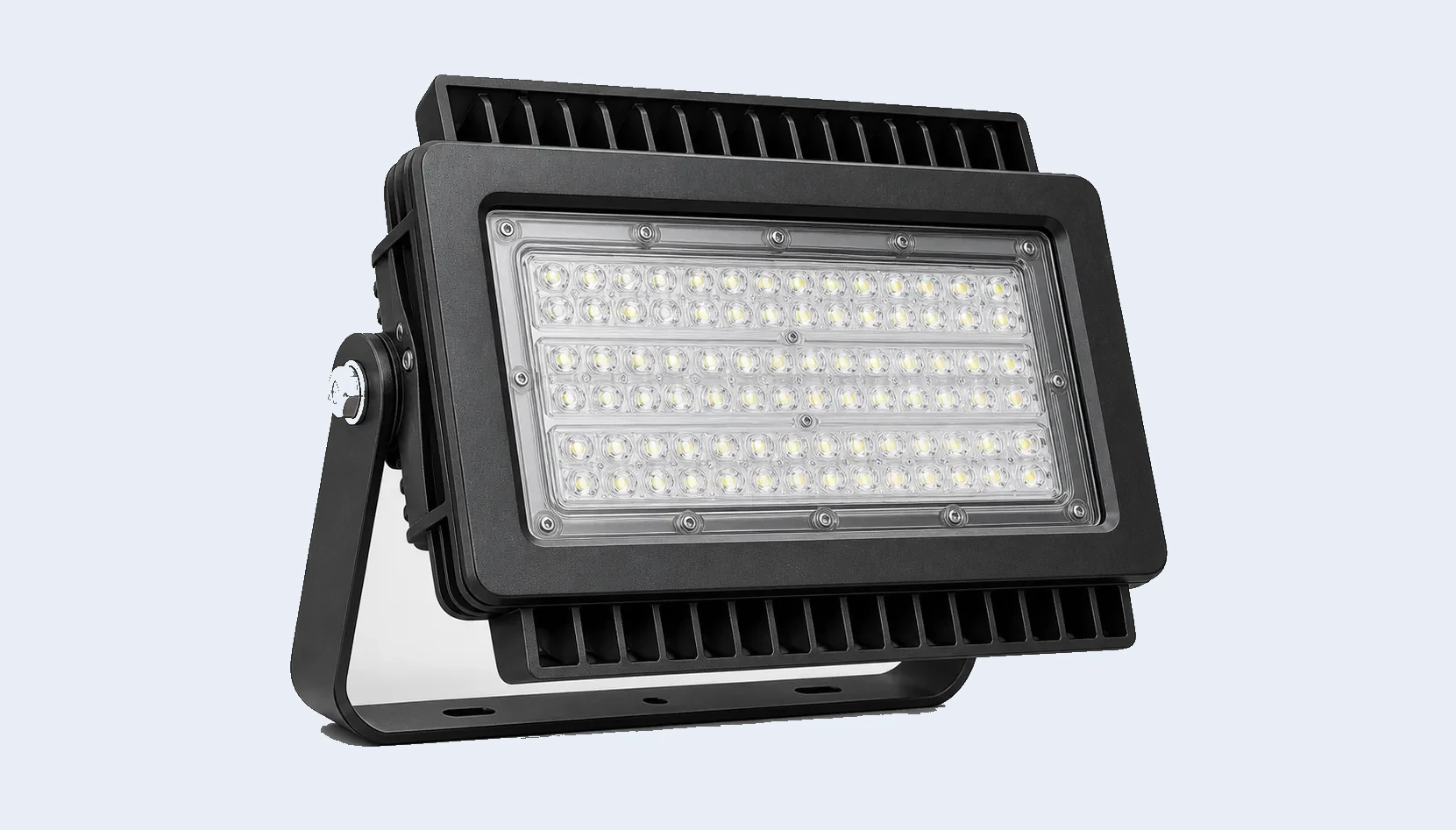

LED Flood Light
Robust flood lighting for facades, yards, loading areas and general exterior project illumination.
Technical Parameters
| Power | 50W / 100W / 150W / 200W / 300W |
|---|---|
| Luminous Efficiency | 140-170 lm/W |
| Input Voltage | 100-277VAC / 200-480VAC |
| CCT | 3000K / 4000K / 5000K / 5700K |
| CRI | Ra70 / Ra80 optional |
| Beam Angle | 15 / 30 / 60 / 90 degrees |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Housing Material | Die-cast aluminum with powder coating |
| Working Temperature | -40 C to +50 C |
| Warranty | 5 years |
Features
Precision optics for long throw and uniform coverage
Adjustable yoke bracket with stainless hardware
Surge protection options for harsh outdoor grids
Low wind-load housing for exposed sites
Applications
Building facades
Outdoor yards
Loading docks
Security lighting
Mounting Options
Yoke bracket
Slip fitter
Pole clamp
Wall bracket
Datasheet package
Detailed datasheets, IES files and certification documents can be shared after confirming your market and project requirements.
Project Support
Need a custom lighting solution?
Share your target application, quantity and certification requirements. Our team will recommend a project-ready lighting package.
