TITAN UFO High Bay Series

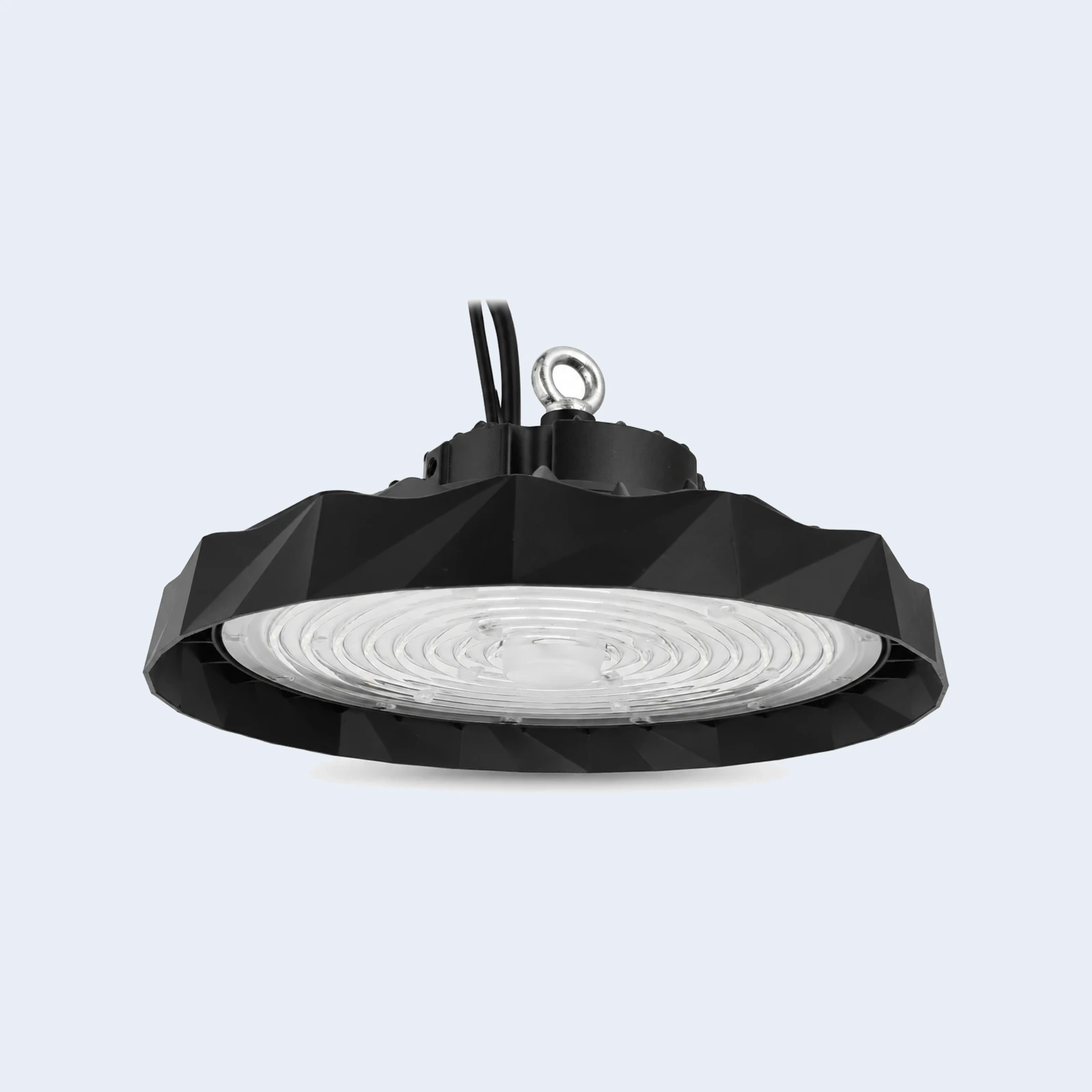

TITAN 102 100W-600W UFO High Bay
Multi-size UFO high bay platform for warehouses, factories and high-ceiling industrial spaces.
Available by configuration for CCT, CRI, beam angle and driver options.
Product Family Information
Description
TITAN 102 UFO High Bay is a compact and efficient high bay lighting platform designed for industrial applications. With four housing sizes and selectable efficiency grades, it provides flexible solutions for project requirements from 100W to 600W.
Benefits
- Match project budget with 150 / 170 / 200 lm/W options
- Cover 100W-600W applications across four housing sizes

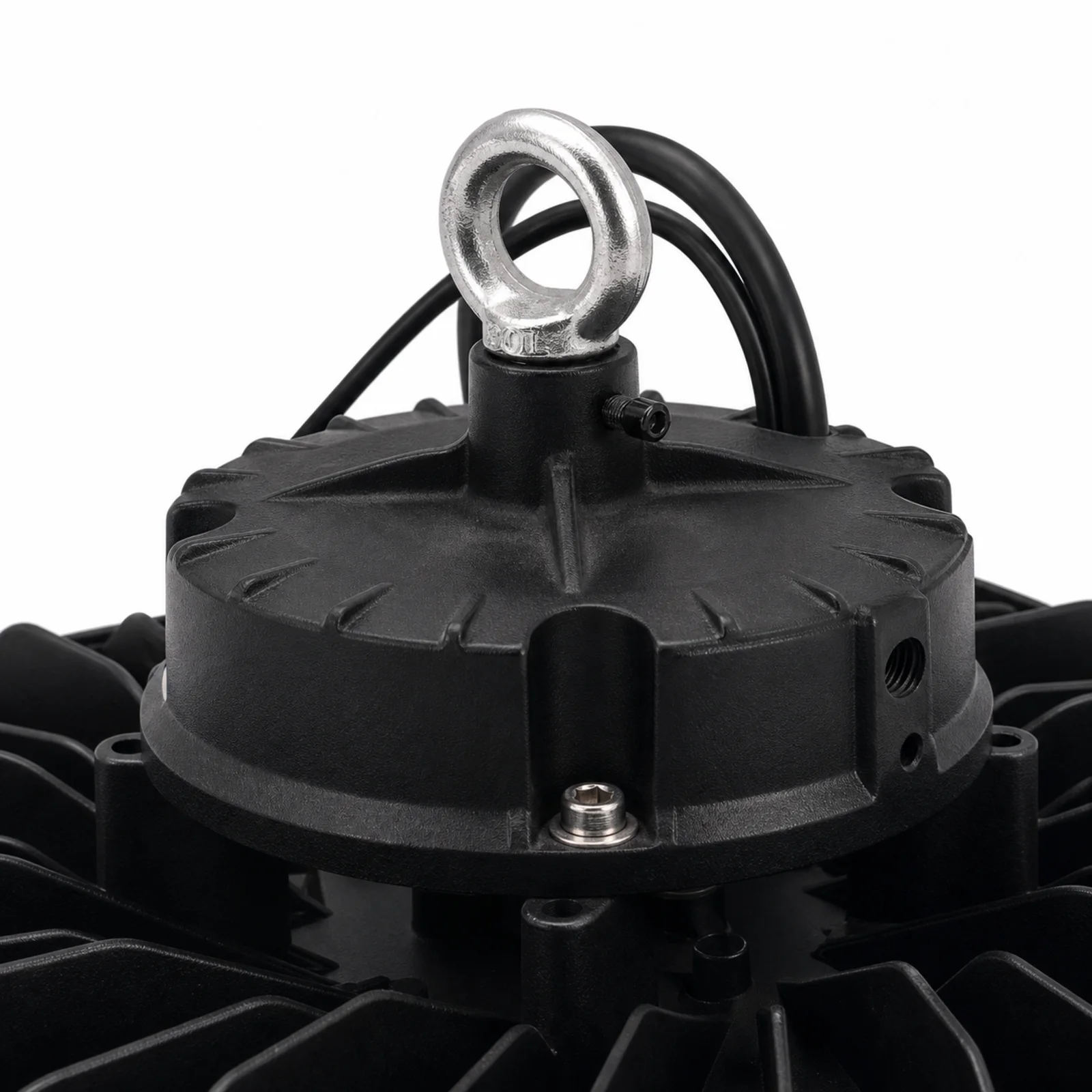

- Fast hook / eye-bolt suspension for new and retrofit projects
Features
- Die-cast aluminum housing

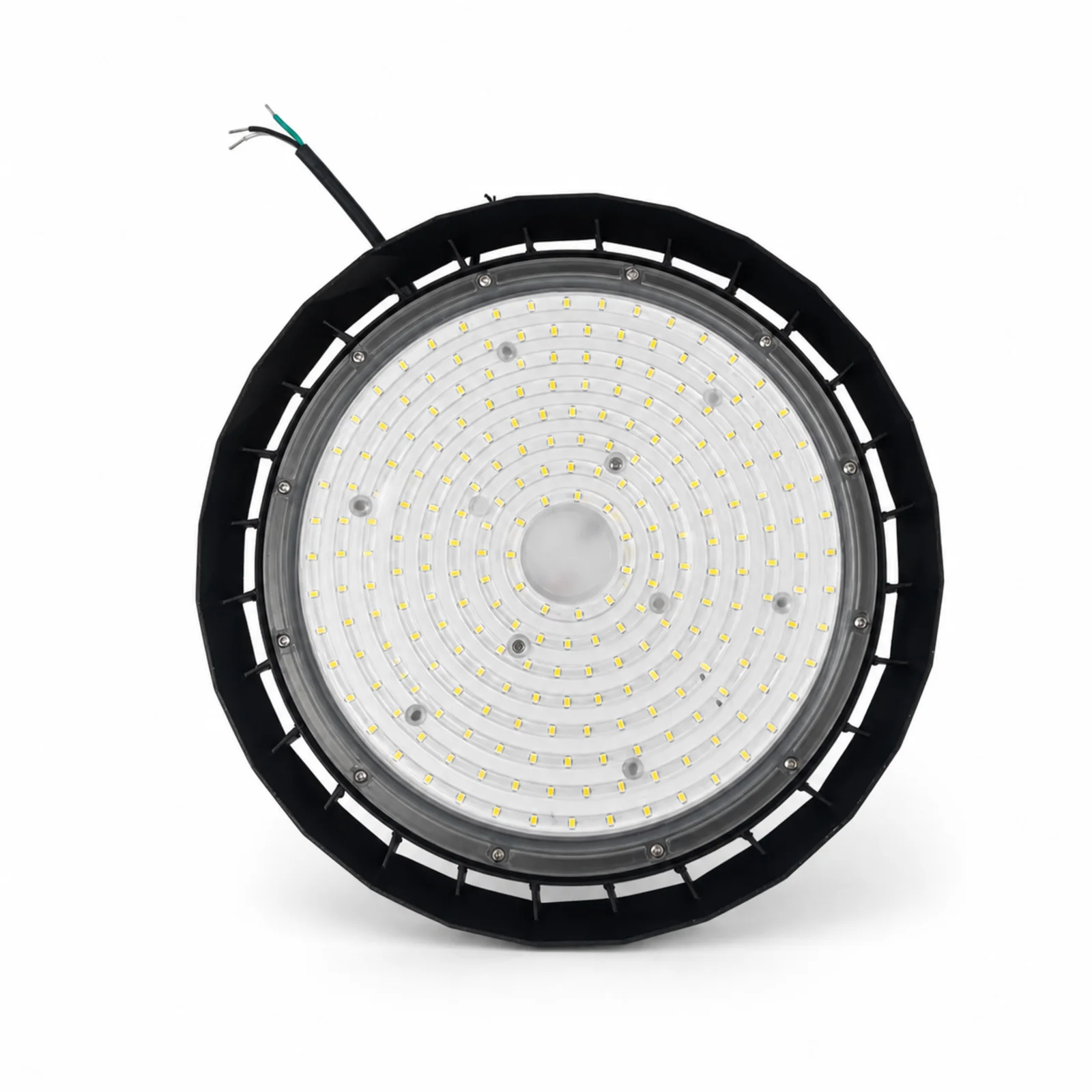

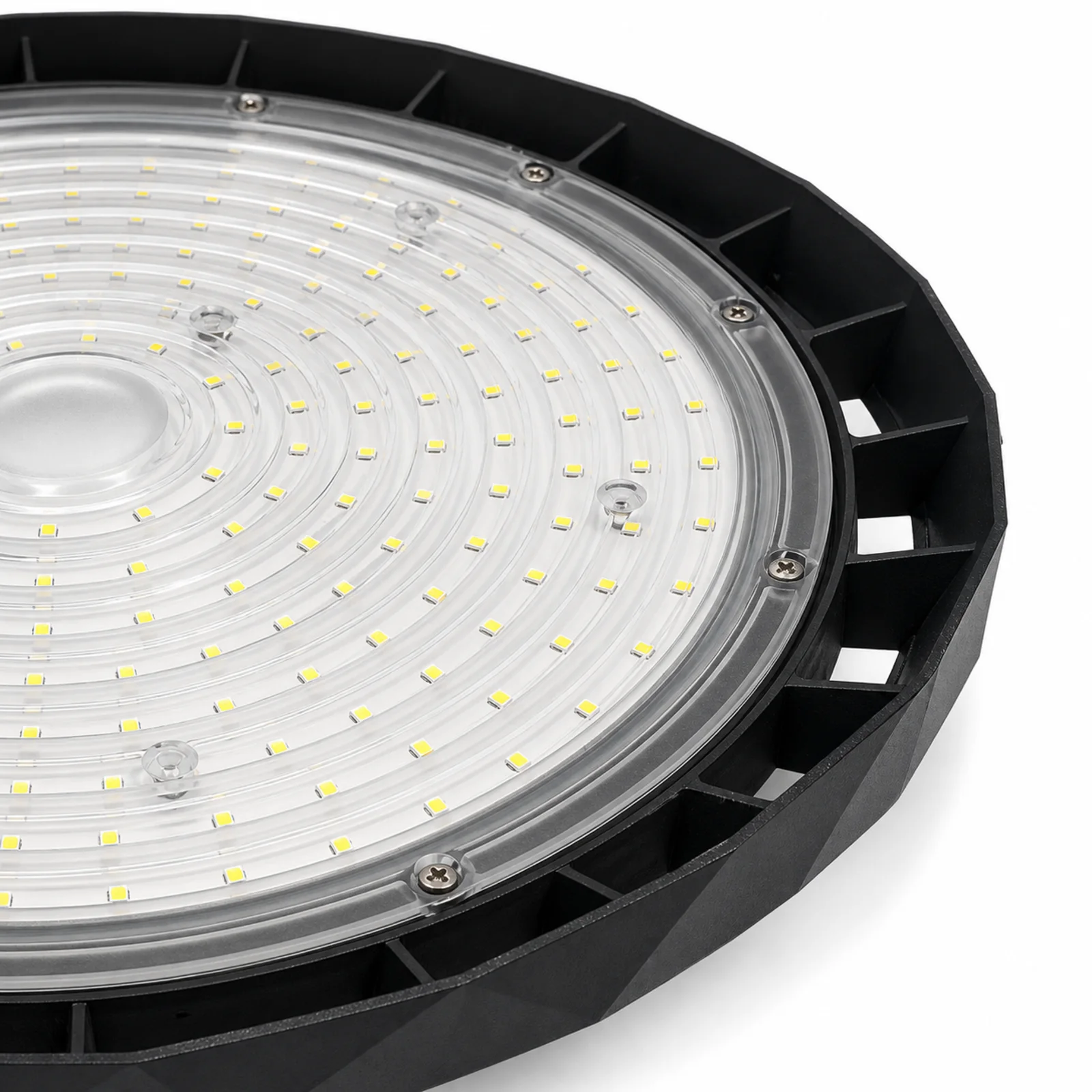

- Circular LED array with optical cover

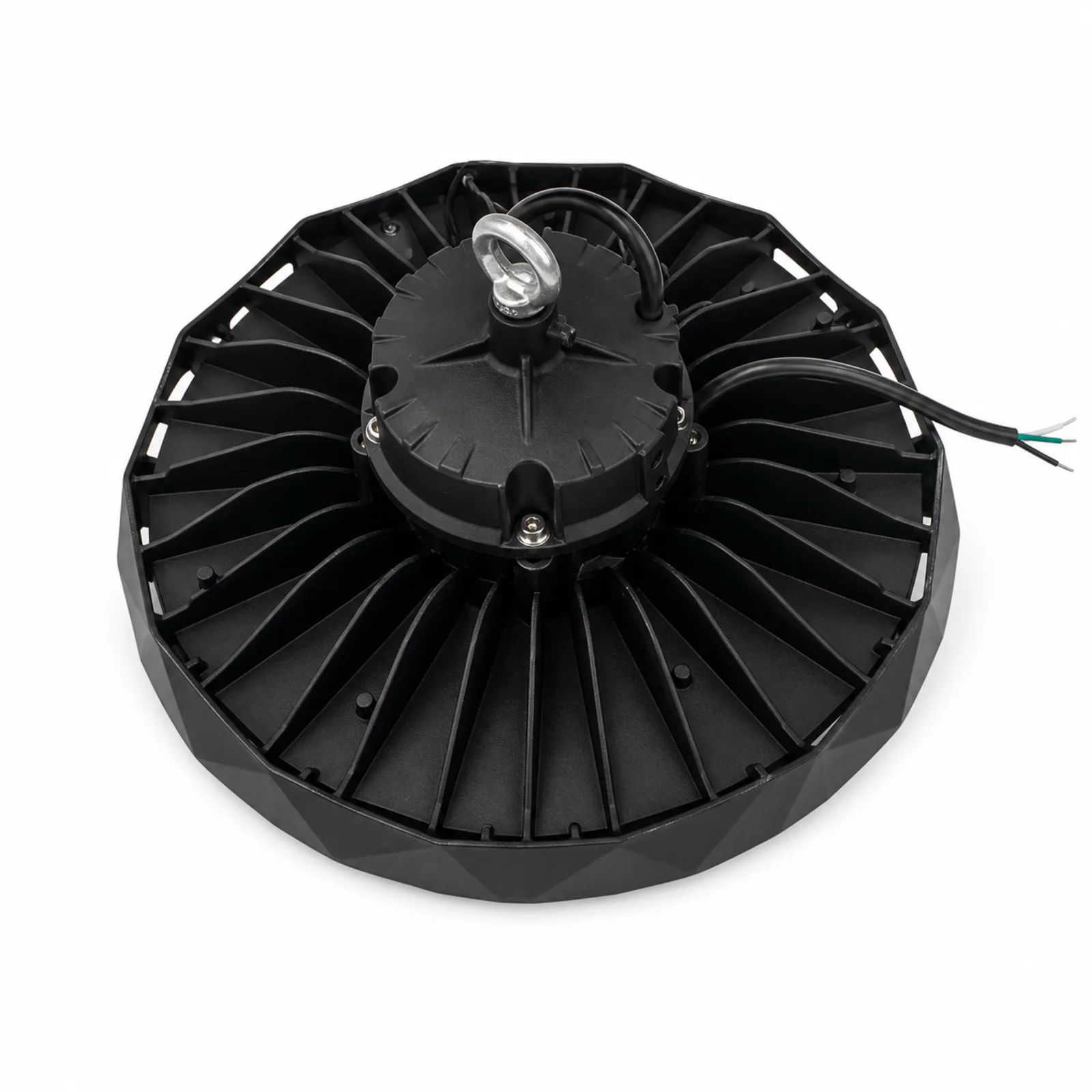

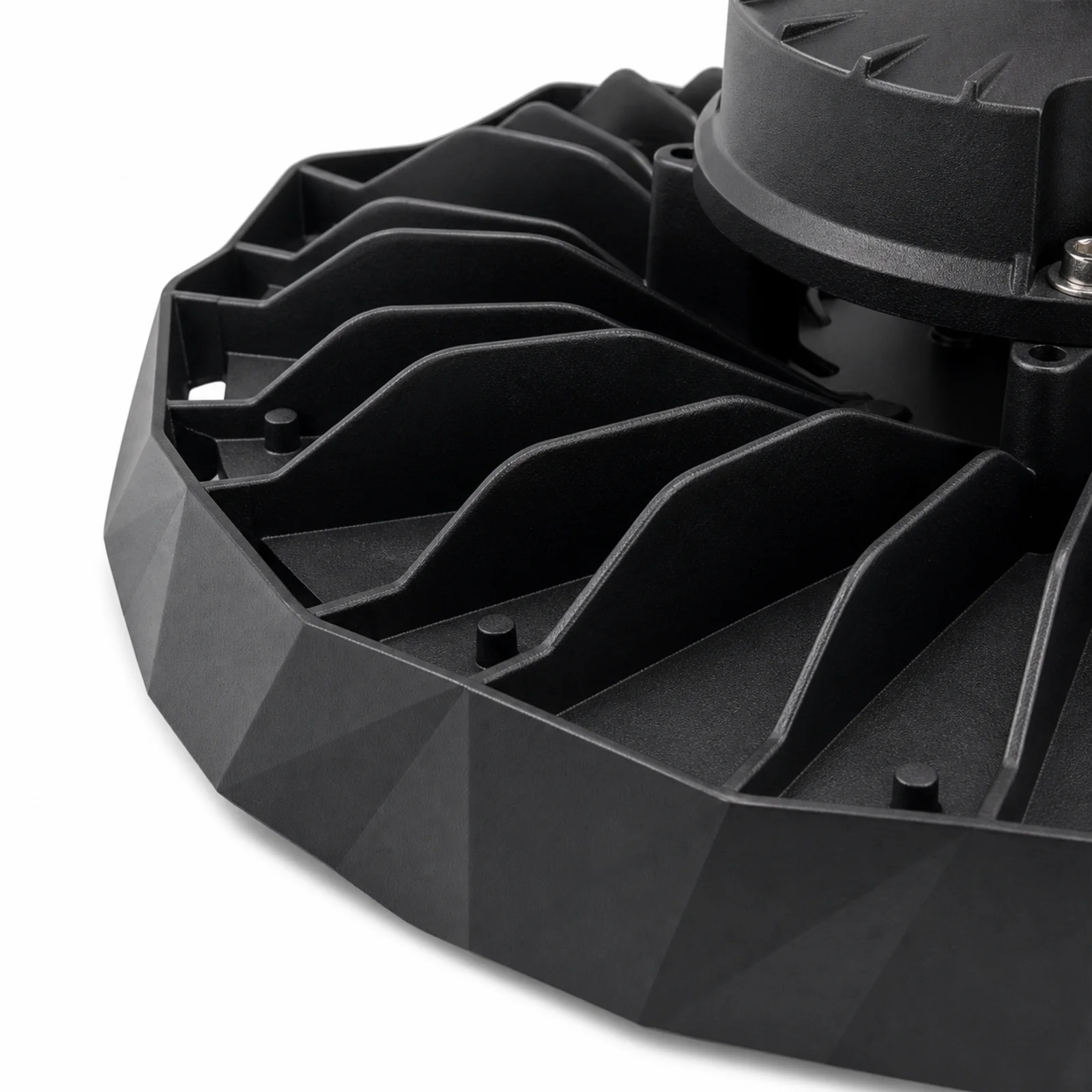

- Radial heat sink structure
- Configurable CCT, CRI, beam angle and driver options
Applications
Power & Size Matrix
| Size | Power Options | Diameter | Height | Efficiency |
|---|---|---|---|---|
| S | 100W / 150W | Φ280mm | H165mm | 150 / 170 / 200 lm/W |
| M | 200W / 240W | Φ320mm | H170mm | 150 / 170 / 200 lm/W |
| L | 300W / 400W | Φ380mm | H190mm | 150 / 170 / 200 lm/W |
| XL | 500W / 600W | Φ450mm | H210mm | 150 / 170 / 200 lm/W |
Efficiency Grades
Standard
150 lm/W
Cost-effective solution
High Efficiency
Recommended170 lm/W
Recommended project balance
Premium
200 lm/W
High-spec energy-saving option
Key Specifications
Datasheet package
Detailed datasheets, IES files and certification documents can be shared after confirming your market and project requirements.
Project Support
Need a custom lighting solution?
Share your target application, quantity and certification requirements. Our team will recommend a project-ready lighting package.
