High Bay Category Landing

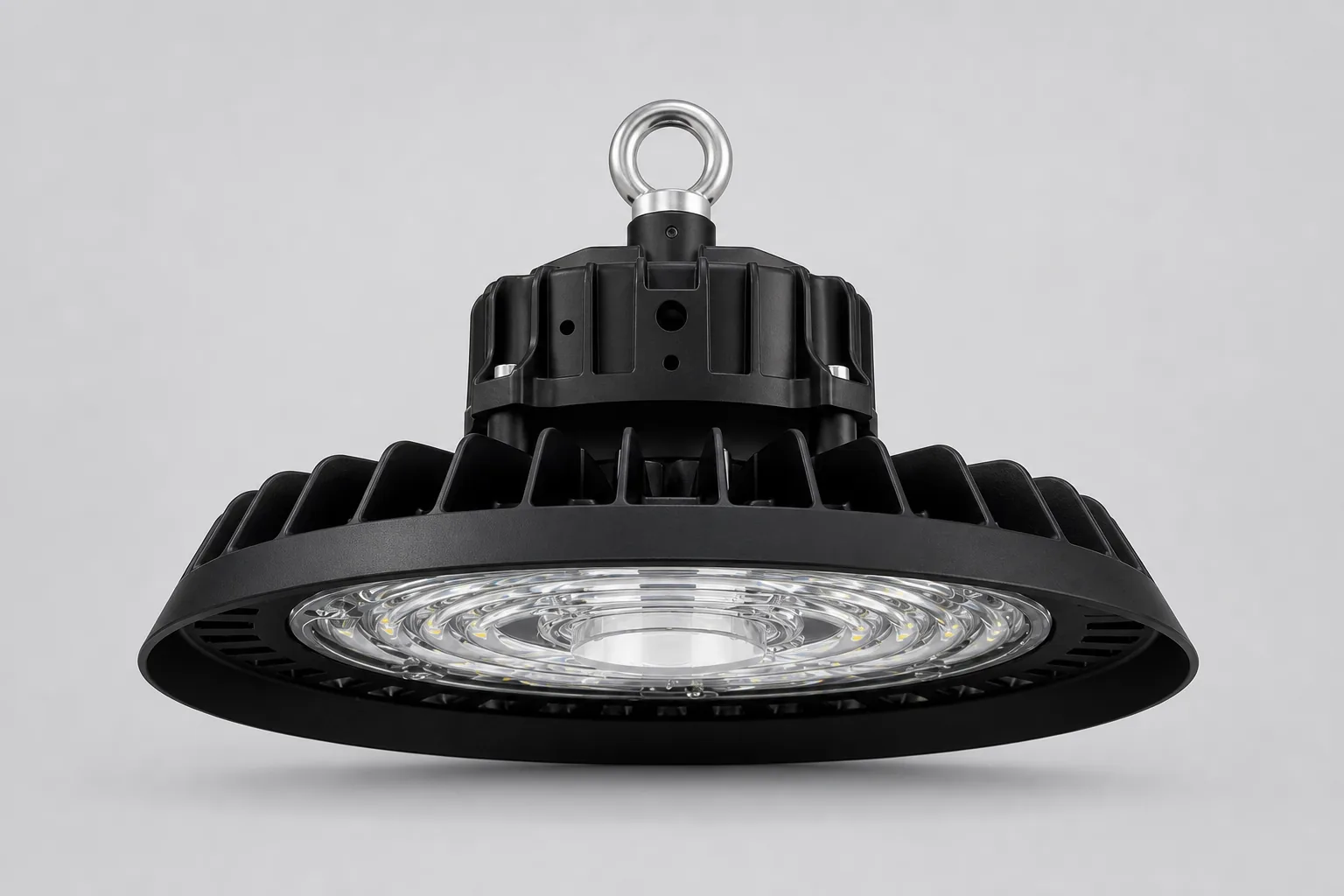

UFO High Bay Category Overview
Category-level guide for high-ceiling applications. TITAN 102 is the primary LUMARK LED UFO high bay series for current project quotations.
Technical Parameters
| Power | 100W / 150W / 200W / 240W |
|---|---|
| Luminous Efficiency | 150-190 lm/W |
| Input Voltage | 100-277VAC / 200-480VAC |
| CCT | 3000K / 4000K / 5000K / 5700K |
| CRI | Ra70 / Ra80 optional |
| Beam Angle | 60 / 90 / 120 degrees |
| IP Rating | IP65 / IP66 |
| IK Rating | IK08 / IK10 |
| Housing Material | Die-cast aluminum with tempered glass |
| Working Temperature | -30 C to +50 C |
| Warranty | 5 years |
Project Support
Need a custom lighting solution?
Share your target application, quantity and certification requirements. Our team will recommend a project-ready lighting package.
